Win Win Co.,Ltd : NC Rotary Tables: HRS series [4th axis] (Hydraulic NC Rotary Table)

PAGE VIEW : 4,350

Product Information :

Name :

NC Rotary Tables: HRS series [4th axis] (Hydraulic NC Rotary Table)

Category :

เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล

Sub - Category :

1. SAMCHULLY

Brand :

SAMCHULLY

Model :

HRS-204F4, HRS-254F4, HRS-254F8, HRS-324F8

Product Type :

เครื่องมือ, เครื่องจักรและอุปกรณ์
สินค้า, ผลิตภัณฑ์

Short Description :

1.High Precision, High Speed Systems 2.Vertical & Horizontal available 3.Compact Design 4.Extremely Rigid Body 5.Realize High Clamping Force by applying Double Piston

Product Detail :

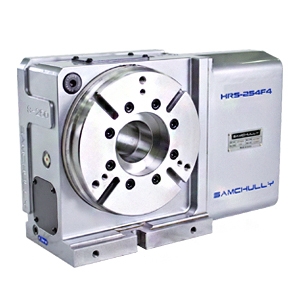

HRS series [4th axis]: Hydraulic NC Rotary Table

4th axis Hydraulic NC Rotary Table

High Precision, High Speed Systems
Vertical & Horizontal available
Compact Design
Extremely Rigid Body
Realize High Clamping Force by applying Double Piston

			HRS-204F4
Table Dia.	[mm]		Ø210
Center Height	[mm]		170
Resister Dia. On face plate	[mm]		Ø75H7
Spindle Thruhole Dia.	[mm]		Ø45H8
Clamp Method			Hydraulic
Allowable Work Inertia	[kgm2]		0.8
Clamp Torque	[N·m]		720
Max. Spindle Speed	[mm-¹]		33.3
Gear Ratio			1/90
Repeatabillity Accuracy	[sec]		4
Indexing Accuracy	[sec]		20
Net Weight	[kg]		79
Servo Motor	[FANUC]		αiF4 / 4000
Allowable Load		Horizontal		200
		Vertical		100
		F [kN]		17
		F x L [N·m]		1100
		F x L [N·m]		480
Allowable Cutting Torque		[N·m]		270

			HRS-254F4 / HRS-254F8
Table Dia.	[mm]		Ø240
Center Height	[mm]		185
Resister Dia. On face plate	[mm]		Ø105H7
Spindle Thruhole Dia.	[mm]		Ø70H8
Clamp Method			Hydraulic
Allowable Work Inertia	[kgm2]		3.12
Clamp Torque	[N·m]		1500
Max. Spindle Speed	[mm-¹]		33.3
Gear Ratio			1/90
Repeatabillity Accuracy	[sec]		4
Indexing Accuracy	[sec]		20
Net Weight	[kg]		116
Servo Motor	[FANUC]		αiF4 / 4000, αiF8 / 3000
Allowable Load		Horizontal		250
		Vertical		125
		F [kN]		21
		F x L [N·m]		1600
		F x L [N·m]		750
Allowable Cutting Torque		[N·m]		480, 600

			HRS-324F8
Table Dia.	[mm]		Ø310
Center Height	[mm]		225
Resister Dia. On face plate	[mm]		Ø130H7
Spindle Thruhole Dia.	[mm]		Ø105H8
Clamp Method			Hydraulic
Allowable Work Inertia	[kgm2]		4.49
Clamp Torque	[N·m]		2300
Max. Spindle Speed	[mm-¹]		25
Gear Ratio			1/120
Repeatabillity Accuracy	[sec]		4
Indexing Accuracy	[sec]		20
Net Weight	[kg]		180
Servo Motor	[FANUC]		αiF8 / 3000
Allowable Load		Horizontal		350
		Vertical		180
		F [kN]		25
		F x L [N·m]		2400
		F x L [N·m]		1440
Allowable Cutting Torque		[N·m]		800

HRS-series [4th axis]'s Catalog
