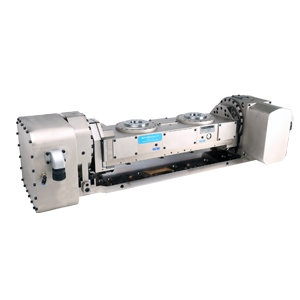

MTR series [Controller]: Multi Spindle Tilting NC Rotary Table (Controlloer)

5th Axis for Multi Spindle Tilting NC Rotary Table

Multi Spindle Tilting Series
Optimized for rocessing left-right paired parts
Double production output
Available to process parts kind of knuckle etc. which complicated shape with multi-axis
High Clamping power (Hydraulic)

MTR2-174
Spindle Dia.	[mm]		Ø110
Center Height	[mm]		240
Resister Dia. On face plate	[mm]		Ø54 (110)
Distance of Center	[mm]		Ø320
Clamp Method			Hydraulic Max. 35bar
Allowable Work Inertia	[kgm²]		-
Net Weight	[kg]		295
			Rotating Axis	Tilting Axis
Max. Spindle Speed	[mm-¹]		25	25
Gear Ratio	[mm]		1/120	1/120
Repeatabillity Accuracy	[sec]		4	4
Indexing Accuracy	[sec]		40	60
Clamp Torque	[N·m]		600	900
Servo Motor	[FANUC]		SGMPS-15A2A6S	SGMPS-15A2A6S
Allowable Load		Horizontal		40, 40
		Vertical		40, 40
		F [kN]		-
		F x L [N·m]		-
		F x L [N·m]		-
Allowable Cutting Torque		[N·m]		-
Moment Of Tilting Weight		W x L [kgf·m]		-
Tilting Range :-20˚~ +120˚

Related Product :

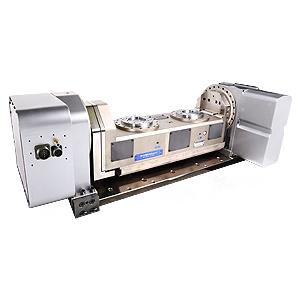

1. NC Rotary Tables: MTR series [5th axis] (Multi Spindle Tilting NC Rotary Table) (ID : 120365)
