![NC Rotary Tables: MS series [Controller] (Multi Spindle NC Rotary Table)](../uploadedimages/c1/ProductThumb_35356_591765021_resize.jpg)
1.Doubles production output
2.Ideal for balanced work-pieces
3.Realize high clamping force by applying double piston
E-Catalog > 1. SAMCHULLY > NC Rotary Tables: MS series [4th axis] (Multi Spindle NC Rotary Table)
PAGE VIEW : 6,050
Product Information :
Name :
NC Rotary Tables: MS series [4th axis] (Multi Spindle NC Rotary Table) Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- 1. SAMCHULLY
Brand :
SAMCHULLY Model :
MS2-170F4, MS2-170LF4Product Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
- สินค้า, ผลิตภัณฑ์
Short Description :
1.Doubles production output
2.Ideal for balanced work-pieces
3.Realize high clamping force by applying double piston
Product Detail :

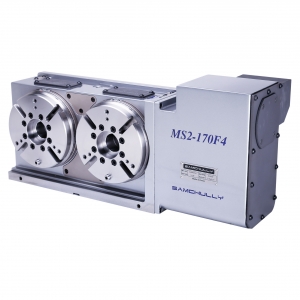

MS series [4th axis]: Multi Spindle NC Rotary Table
4th axis type for Multi Spindle NC Rotary Table
- Doubles production output
- Ideal for balanced work-pieces
- Realize high clamping force by applying double piston
| MS2-170F4 / MS2-170LF4 | ||||
|---|---|---|---|---|
| Table Dia. | [mm] | (Table: Option) Ø175 | ||
| Center Height | [mm] | 140 | ||
| Resister Dia. On face plate | [mm] | Ø60H8 | ||
| Spindle Thruhole Dia. | [mm] | Ø40H8 | ||
| Clamp Method | Pneumatic | |||
| Allowable Work Inertia | [kgm²] | 0.51 | ||
| Clamp Torque | [N·m] | 380 | ||
| Max. Spindle Speed | [mm-¹] | 33.3 | ||
| Gear Ratio | 1/90 | |||
| Max. Spindle Speed | [sec] | 4 | ||
| Indexing Accuracy | [sec] | 30 | ||
| Net Weight | [kg] | 87 | ||
| Servo Motor | [FANUC] | αiF4 / 4000 | ||
| Allowable Load | Horizontal |  |
160, 160 | |
| Vertical |  |
80, 80 | ||
| F [kN] |  |
10 | ||
| F x L [N·m] |  |
600 | ||
| F x L [N·m] |  |
380 | ||
| Allowable Cutting Torque | [N·m] |  |
300 | |
 |
||||
