Product Information :
Name :
NC Rotary Tables: MUT series (Manual Turn Table) Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- 1. SAMCHULLY
Brand :
SAMCHULLY Model :
MUT-600Product Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
- สินค้า, ผลิตภัณฑ์
Short Description :
1.1˚ / 5˚ Indexing
2.Max. Work Load 2 ton
3.High Accuracy by Special Curvic Coupling
4.Powerful Clamfing force Product Detail :

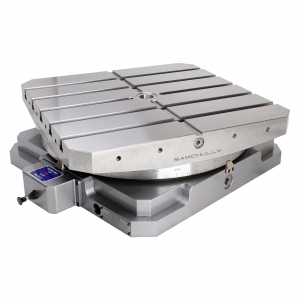

MUT series: Manual Turn Table
Manual Turn Table
- 1˚ / 5˚ Indexing
- Max. Work Load 2 ton
- High Accuracy by Special Curvic Coupling
- Powerful Clamfing force
| MUT-600 | ||||
|---|---|---|---|---|
| Table Dia. | [mm] | Ø600 | ||
| Center-Hole Dia. | [mm] | Ø40 | ||
| Rounded Corners | [mm] | Ø794 | ||
| Height | [mm] | 200 | ||
| Driving Method | Pneumatic 7kg/cm² | |||
| Allowable Work Inertia | [kgm²] | 90 | ||
| Clamp Capacity | [kgf] | 3200 | ||
| Width of T-slot | [mm] | 20H7 | ||
| Indexing Accuracy | [sec] | 6 | ||
| Min. Increment | [deg.] | 1 or 5 | ||
| Max. Thrust Load | Axial Force F |  |
3500 | |
| Radial Moment FxL |  |
140 | ||
| Tilting Moment FxL |  |
220 | ||
| Max. Work Load | [kg] |  |
2000 | |
| Net Weight | [kg] | 400 | ||
