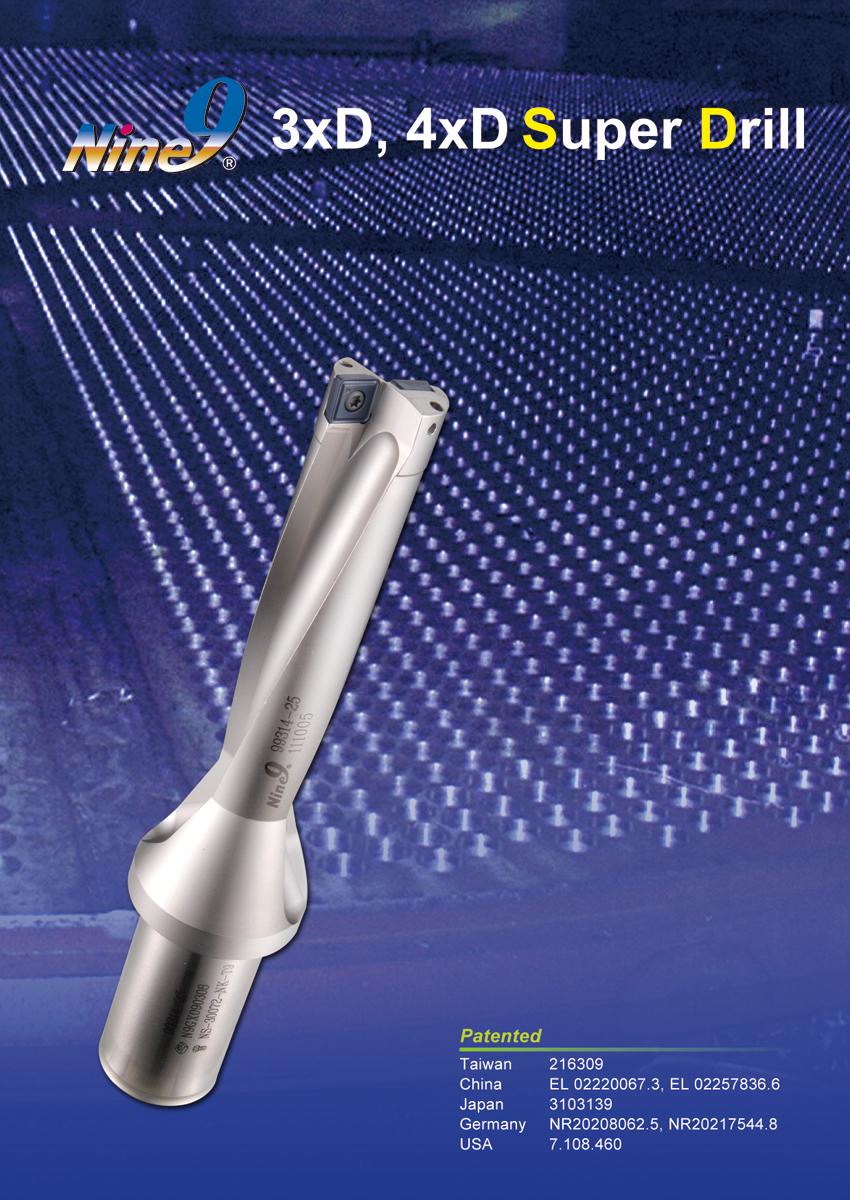

Win Win Co.,Ltd : 3xD, 4xD Super Drills

Product Detail :

Main Features:

3xD and 4xD Tool Holder:

SMALLEST DIMENSION
3xD: Ø10 to Ø30 mm.
4xD: Ø16 to Ø30 mm.

SMALLER CUTTING CHIP
‧ The center and peripheral inserts are positioned in order
    to divide the cutting chips into smaller spiral shape.
     It helps the cutting chip to be removed faster and easier.
‧ Designed for high productivity, high speed cutting.
     Coolant supply is needed.

BETTER SURFACE FINISH AND BETTER DIAMETER ACCURACY
‧ Special insert positioning to balance the cutting forces,
     better surface finish and diameter accuracy are achievable.

‧ The tool holder is made of high alloy steel,
     hardened and nickel plated.
‧ Coolant is supplied by 2-straight coolant holes
     to ensure enough coolant volume to flush out
    the cutting chips.
‧ The insert pockets are arranged to split the
     cutting chip which makes the cutting chip
     excavation more efficient.
‧ The flutes of the drill are non symmetrical there
     by increasing the rigidity of the tool holder.

Inserts:

‧ Patented dual-relief angle insert
Primary relief angle is to increase the toughness
of the insert, secondary relief angle is to
strengthen the axial feed rate.
FULLY GROUND DUAL-RELIEF INSERT, FOR IMPROVED
SURFACE FINISH AND HIGHER FEED RATE.
SQUARE INSERT WITH 4 CUTTING EDGES, REDUCING COST PER INSERT.
CENTER AND PERIPHERAL INSERTS ARE IDENTICAL,
REDUCING COST OF STOCK OF INSERT INVENTORY.
GRADES ARE AVAILABLE TO SUIT ALL MATERIALS.

3xD Super Drill 10mm~30mm:

Ordering code	D	T	L	d1	d2	L1	Insert Screw / Key	Radial Adjustment	D max
00-99313-10	10.0	30.0	49	20	27	49	N9GX04T002 NS-18037 NK-T6 Torque: 0.6Nm	0.25	10.5
00-99313-10.3	10.3	30.9	52	20	27	49		0.25	10.8
00-99313-10.5	10.5	31.5	52	20	27	49		0.25	11.0
00-99313-11	11.0	33.0	52	20	27	49		0.20	11.4
00-99313-11.5	11.5	34.5	55	20	27	49		0.20	11.9
00-99313-12	12.0	36.0	55	20	27	49		0.15	12.3
00-99313-12.5	12.5	37.5	58	20	27	49		0.15	12.8
00-99313-13	13.0	39.0	58	20	27	49	N9GX05T103 NS-20045 NK-T6 Torque: 0.8Nm	0.30	13.6
00-99313-13.5	13.5	40.5	61	20	27	49		0.30	14.1
00-99313-14	14.0	42.0	61	20	27	49		0.25	14.5
00-99313-14.5	14.5	43.5	64	20	27	49		0.25	15.0
00-99313-15	15.0	45.0	64	20	27	49		0.20	15.4
00-99313-15.5	15.5	46.5	67	20	27	49		0.20	15.9
00-99313-16	16.0	48.0	74	25	31	49	N9GX060204 NS-22055 NK-T7 Torque: 1.0Nm	0.40	16.8
00-99313-16.5	16.5	49.5	76	25	31	55		0.40	17.3
00-99313-17	17.0	51.0	76	25	31	55		0.35	17.7
00-99313-17.5	17.5	52.5	78	25	31	55		0.35	18.2
00-99313-18	18.0	54.0	78	25	31	55		0.30	18.6
00-99313-18.5	18.5	55.5	80	25	31	55		0.30	19.1
00-99313-19	19.0	57.0	80	25	31	55		0.25	19.5
00-99313-19.5	19.5	58.5	85	25	31	55		0.25	20.0
00-99313-20	20.0	60.0	85	25	31	55	N9GX070304 NS-25060 NK-T7 Torque: 1.2Nm	0.50	21.0
00-99313-20.5	20.5	61.5	87	25	31	55		0.50	21.5
00-99313-21	21.0	63.0	87	25	31	55		0.45	21.9
00-99313-21.5	21.5	64.5	88	25	31	55		0.45	22.4
00-99313-22	22.0	66.0	88	25	31	55		0.40	22.8
00-99313-22.5	22.5	67.5	90	25	31	55		0.40	23.3
00-99313-23	23.0	69.0	90	25	31	55		0.35	23.7
00-99313-23.5	23.5	70.5	92	25	31	55		0.35	24.2
00-99313-24	24.0	72.0	92	25	31	55		0.30	24.6
00-99313-25	25.0	75.0	114	32	43	58	N9GX090308 NS-30072 NK-T9 Torque: 2.0Nm	0.50	26.0
00-99313-26	26.0	78.0	115	32	43	58		0.50	27.0
00-99313-27	27.0	81.0	117	32	43	58		0.40	27.8
00-99313-28	28.0	84.0	126	32	43	58		0.40	28.8
00-99313-29	29.0	87.0	127	32	43	58		0.30	29.6
00-99313-30	30.0	90.0	130	32	43	58		0.30	30.6

* Other sizes are available on request.

4xD Super Drill 16mm~30mm

Ordering code	D	T	L	Ød1	Ød2	L1	Insert Screw / Key	Radial Adjustment	D max
00-99314-16	16	64	90	25	31	55	N9GX060204 NS-22055 NK-T7 Torque: 1.0Nm	0.40	16.8
00-99314-17	17	68	93	25	31	55		0.35	17.7
00-99314-18	18	72	96	25	31	55		0.30	18.6
00-99314-19	19	76	99	25	31	55		0.25	19.5
00-99314-20	20	80	105	25	31	55	N9GX070304 NS-25060 NK-T7 Torque: 1.2Nm	0.50	21.0
00-99314-21	21	84	108	25	31	55		0.45	21.9
00-99314-22	22	88	110	25	31	55		0.40	22.8
00-99314-23	23	92	113	25	31	55		0.35	23.7
00-99314-24	24	96	116	25	31	55		0.30	24.6
00-99314-25	25	100	139	32	43	58	N9GX090308 NS-30072 NK-T9 Torque: 2.0Nm	0.50	26.0
00-99314-26	26	104	141	32	43	58		0.50	27.0
00-99314-27	27	108	144	32	43	58		0.40	27.8
00-99314-28	28	112	154	32	43	58		0.40	28.8
00-99314-29	29	116	156	32	43	58		0.30	29.6
00-99314-30	30	120	160	32	43	58		0.30	30.6

Eccentric Ring

‧ Adjustable range: E=±0.2 mm
‧ For hole diameter adjustment
on Machining Center.
‧ For center height adjustment
of CNC Lathe.

Ordering Code	Part No.	ØD	Ød	ØD1	L1	L2	L3	L4	L5
00-99302-2520	LS25-ID20	25	20	41	43	33	3	4	7
00-99302-3225	LS32-ID25	32	25	48	59	41	6	5	12
00-99302-4032	LS40-ID32	40	32	58	69	43	6	5	20

Periphery Insert of SD, SPD

‧ Patented Dual-relief angle insert.
‧ Square insert, 4 cutting edges, reducing cost.
‧ Honed on the cutting edge, good chip breaking condition.
‧ Fully ground carbide insert.

NC2032: K20F grade, AlTiN coated, for carbon steel, alloy steel,
casting iron, stainless steel and hardened steel up to HRC 50.

NC40: P35 grade, tougher insert with special chip breaker, TiN coated,
for low carbon steel and stainless steel.
Only available for insert N9GX06020431 and N9GX09030831.

‧ Please follow the cutting data to choose appropriate insert grade on next page.
‧ 31 means the insert has different chip breaker for tougher material applications.

Ordering code			Dimensions			Insert Screw	Screw Key	Apply for
Code of insert	Grade	Coated	L	S	re	Insert Screw	Screw Key	SPD	SD	Chamfer Mill
N9GX04T002	NC2032	AlTiN	4.0	1.8	0.2	NS-18037	NK-T6/ 0.6Nm	●	●	●
N9GX04T002	NC9071	TiN	4.0	1.8	0.2	NS-18037	NK-T6/ 0.6Nm			●
N9GX05T103	NC2032	AlTiN	5.0	2.0	0.2	NS-20045	NK-T6 / 0.8Nm	●	●
N9GX060204	NC2032	AlTiN	6.35	2.38	0.4	NS-22055	NK-T7/ 1.0Nm	●	●	●
N9GX060204	NC9071	TiN	6.35	2.38	0.4	NS-22055	NK-T7/ 1.0Nm			●
N9GX06020431*	NC40	TiN	6.35	2.38	0.4	NS-22055	NK-T7/ 1.0Nm	●
N9GX070304	NC2032	AlTiN	7.94	3.18	0.4	NS-25060	NK-T7/ 1.2Nm		●
N9GX090308	NC2032	AlTiN	9.52	3.18	0.8	NS-30072	NK-T9/ 2.0Nm	●	●	●
N9GX090308	NC9071	TiN	9.52	3.18	0.8	NS-30072	NK-T9/ 2.0Nm			●
N9GX09030831*	NC40	TiN	9.52	3.18	0.8	NS-30072	NK-T9/ 2.0Nm	●

Adjustment on CNC Lathe

‧ Centre height on the lathe:
- The face of the inner edge must
    be 0-0.2 mm over the centre.
- The height of the inner edge can be
    adjusted by eccentric ring.

‧ Diameter of the drill:
- The diameter of the drilled hole can be
    adjusted along X-axis of the lathe.
    The maximum radial adjustment is shown
    on the specification of the product.

‧ Check the centre height of the inner insert:
- Drill 3 mm depth and check that there is a small
    pip at the centre of the bottom of the hole.
    The pip should be between 0.1mm and 0.5mm
    in diameter.
- If there is no pip; the inner insert must be adjusted
    to be over the centre.
- If the pip is larger than 0.5mm diameter; the centre of
    the drill should be adjusted lower.

Cutting Data

ISO Class	Work piece material	Grade of insert	T= Length/ Dia.	Vc m/min.	Feed rate f mm/rev.
					N9GX04T002	N9GX05T103	N9GX060204	N9GX070304	N9GX090308
					Dia.10~12.5	Dia.13~15.5	Dia.16~19.5	Dia.20~24	Dia.25~30
P	Carbon steel C<0.3% Ex.:S25C, SS41	NC2032	T=3D	80~250	0.03~0.06	0.04~0.08	0.06~0.10	0.06~0.10	0.08~0.12
	Carbon steel C<0.3% Ex.:S25C, SS41	NC2032	T=4D	60~180	-	-	0.06~0.10	0.06~0.10	0.08~0.12
	Carbon steel C>0.3% Ex.:S50C, P5	NC2032	T=3D	80~300	0.04~0.08	0.06~0.10	0.06~0.12	0.08~0.12	0.08~0.15
	Carbon steel C>0.3% Ex.:S50C, P5	NC2032	T=4D	60~150	-	-	0.06~0.12	0.08~0.12	0.08~0.15
	Low alloy steel C<0.3% Ex.:SCM415	NC2032	T=3D	80~250	0.04~0.08	0.04~0.08	0.06~0.10	0.06~0.10	0.08~0.12
	Low alloy steel C<0.3% Ex.:SCM415	NC2032	T=4D	60~150	-	-	0.06~0.10	0.06~0.10	0.08~0.12
	Low alloy steel C>0.3% Ex.:SCM440	NC2032	T=3D	80~250	0.04~0.08	0.04~0.10	0.06~0.12	0.06~0.12	0.08~0.15
	Low alloy steel C>0.3% Ex.:SCM440	NC2032	T=4D	60~150	-	-	0.06~0.12	0.06~0.12	0.08~0.15
	High alloy steel Ex.:SKD11	NC2032	T=3D	60~150	0.03~0.06	0.04~0.08	0.06~0.10	0.06~0.10	0.08~0.12
	High alloy steel Ex.:SKD11	NC2032	T=4D	50~100	-	-	0.06~0.10	0.06~0.10	0.08~0.12
	Casting steel	NC2032	T=3D	80~180	0.03~0.06	0.04~0.08	0.06~0.10	0.06~0.10	0.08~0.12
	Casting steel	NC2032	T=4D	60~120	-	-	0.06~0.10	0.06~0.10	0.08~0.12
M	Stainless steel Ex.:SUS304	NC2032	T=3D	60~150	0.03~0.06	0.04~0.08	0.04~0.10	0.06~0.10	0.06~0.12
M	Stainless steel Ex.:SUS304	NC2032	T=4D	50~100	-	-	0.04~0.10	0.06~0.10	0.06~0.12
K	Casting Iron Ex.:FC25	NC2032	T=3D	80~120	0.04~0.08	0.06~0.08	0.06~0.08	0.06~0.10	0.08~0.12
K	Casting Iron Ex.:FC25	NC2032	T=4D	60~100	-	-	0.06~0.08	0.06~0.10	0.08~0.12
N	Al, and non-ferrous metal Ex.:A6061	-	-	-	-	-	-	-	-
N	Al, and non-ferrous metal Ex.:A6061	-	-	-	-	-	-	-	-
H	Hardened steel Ex.:SKD61	NC2032	T=3D	60~100	0.03~0.06	0.04~0.08	0.05~0.08	0.06~0.08	0.06~0.10
H	Hardened steel Ex.:SKD61	NC2032	T=4D	40~80	-	-	0.05~0.08	0.06~0.08	0.06~0.10

* The maximum misalignment of the drill center
is +0.2 mm/-0.5 mm on the CNC lathe.

Formulas of Spindle Speed and Feed Rate:
