Product Information :
Name :
DAIYAC COLLET CHUCK & GUIDE BUSH Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- DAIYAC Collet Chuck & GUIDE BUSH
Brand :
DAIYAC COLLET CHUCK & GUIDE BUSH Product Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :
DAIYAC COLLET CHUCK & GUIDE BUSH Product Detail :
COLLET CHUCK
| GUIDE BUSH | Broad Range of Applicability |

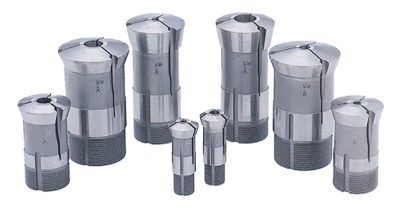

| As with our collet chucks, there is a wide selection of carbide type and steel type guide bushes just right for your machines. | |
 |
|
The Lineup of Our Collet Chucks and Guide Bushes
| Collet Chucks for CNC Auto Lathes | Guide Bushes for CNC Auto Lathes |
| for Steel or Carbide Applications | for Steel, Carbide or Cermet Applications |
| Attachment Collet Chucks | Special Collet Chucks |
| for Steel or Carbide Applications | for Steel or Carbide Applications |
COLLET CHUCK
GUIDE BUSH
Accuracy Inspection Table, a Proof of Reliability
Every product of ours comes with an accuracy inspection table, which assures you of its accuracy.
(Note: The accuracy data represent the measured values with the product set in our measuring jig. They can be somewhat different when it is set in a machine.)
An example of accuracy inspection table with standard and high accuracy values.
| Size Category | Measuring Position | Standard (mm) | High Precision (mm) |
| 2.99mm or Below | End Position | 0.005 | 0.003 |
| 10mm Away | 0.006 | 0.005 | |
| 3.00mm or Above | End Position | 0.005 |
0.003 |
| 20mm Away | 0.008 | 0.005 |
| Production Based on a Quality Management System (ISO9001) |
Chuck Inspection |
 |
 |
 High Precision Collet Chuck & Guide Bush |
| The table for Collet Chuck & Guide Bush's code according to the model can be downloaded. Prior registration is necessary for download. We hope on the application page here by the person who hopes for registration. |
Ultra-Small Diameter Chucks
| Small sizes from 0.25 diameter will be supplied to your order. |
 |
Collet Chucks for Dedicated Machines
| We will design and manufacture to your order for even a single piece. |
 |
Collet Chucks for Winding Machines
| Please consult us for one best suited to your winding machine. | |
 |
 |
| Enlargement of a chuck for a winding machine▲ | |
Collet Chucks for Drills
| A great variety of collet chucks for drills are available for your choice. |
 |
