Product Information :
Name :
PCS Broken Tool Sensor Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- 2. P.M.T. PIONEER MACHINE TOOLS
Brand :
PCS Model :
PCS-100, SCU-100, PCS-250, SCU-250Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
PCS Broken Tool Sensor
In automatic and unattended machining, it is imperative to detect the broken tool when it take place. If it’s undetected, a huge loss of cost will be caused from such as scrap parts, machine’s damage and downtime. It can be easily installed with the machine at an affordable cost, and can detect the breakage of drill, tap and reamer. The sensor is bracket-mounted close to the tool easily and conveniently. A needle is arranged in different length and can be bent so that the sensor would be installed near by the tool flexibly even though the space around he tool is tight and limited. SCU control unit is installed in the machine tool cabinet.
High sealing performance(IP67), Small dia. of tool, 1.0mm or below, can be detected.
Model：PCS-100 w/SCU-100Ca PCS-250 w/TCU-250
Product Detail :
For catalog of PCS 100/200 System Broken Tool Sensor please send a request to est@winwin.th.com

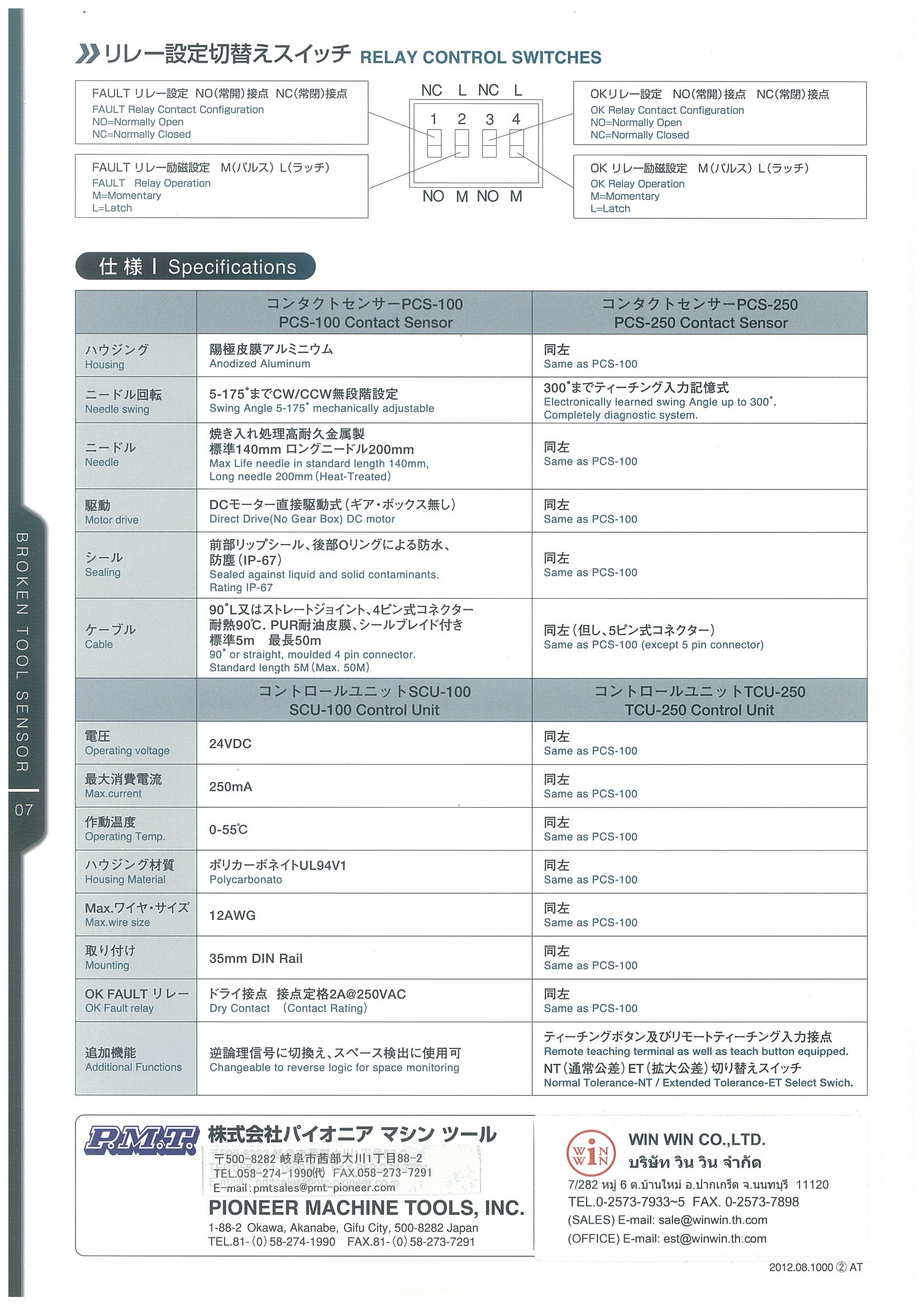

Types of PCS Broken Tool Sensor:

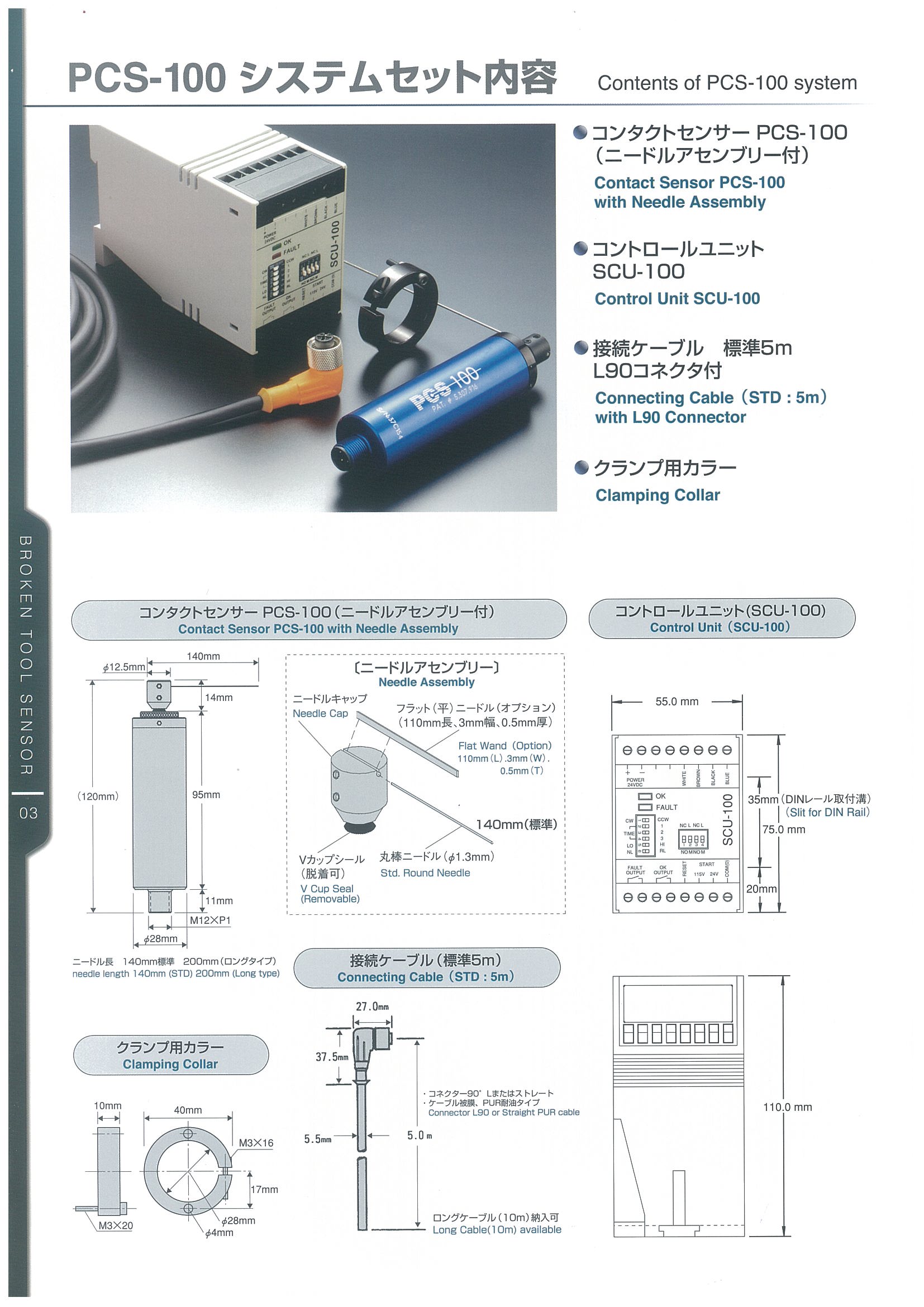

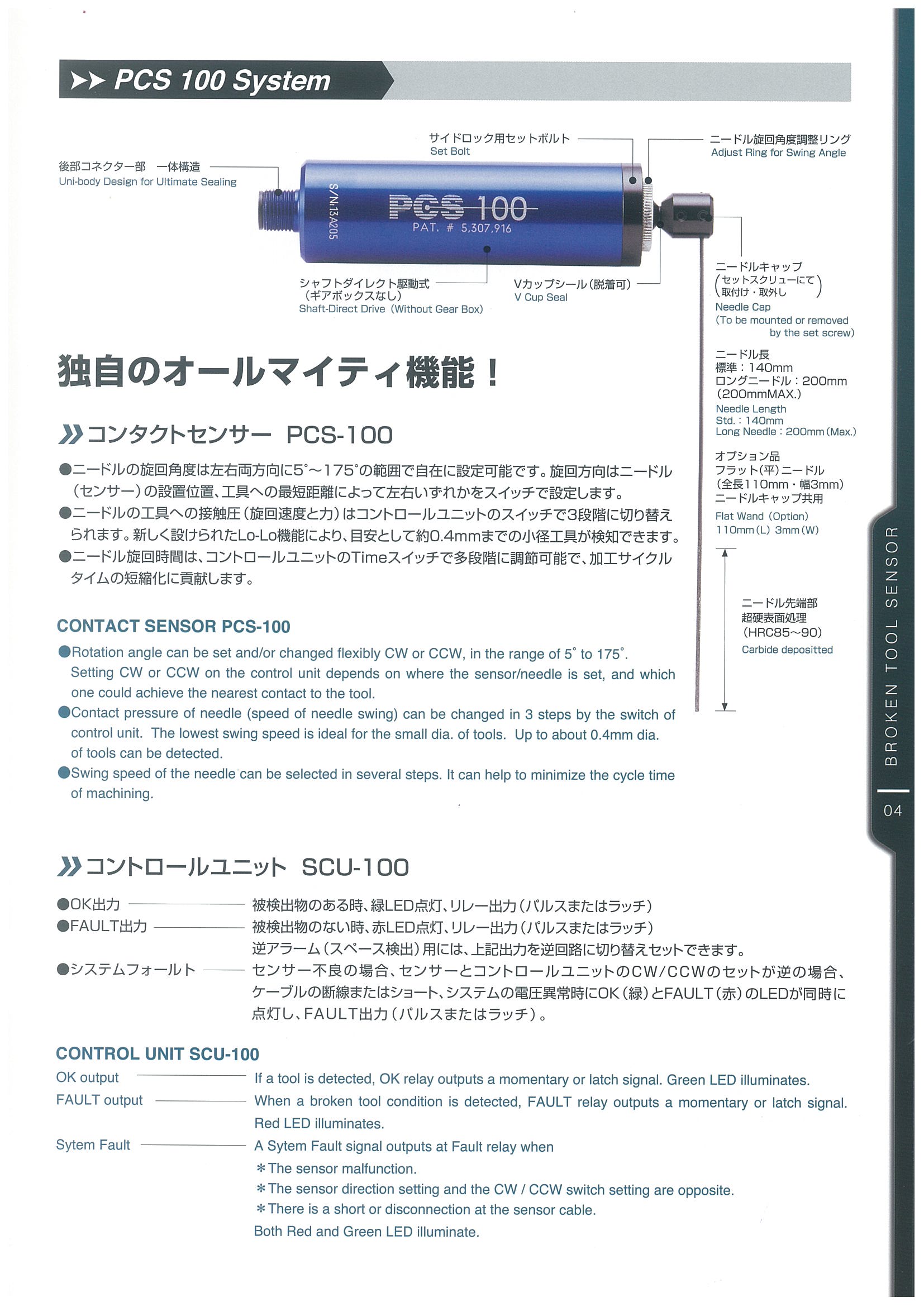

PCS-100 Sensor

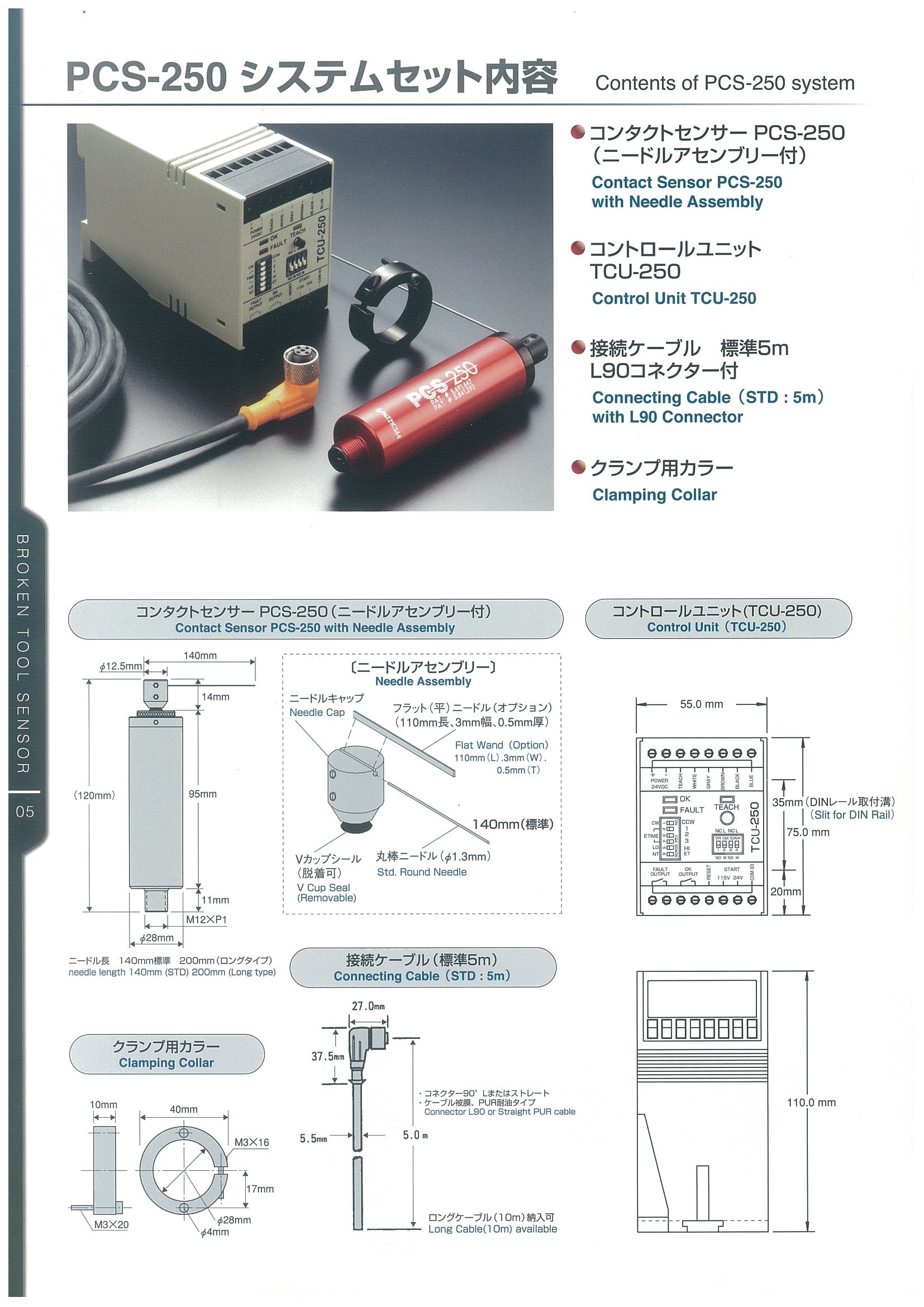

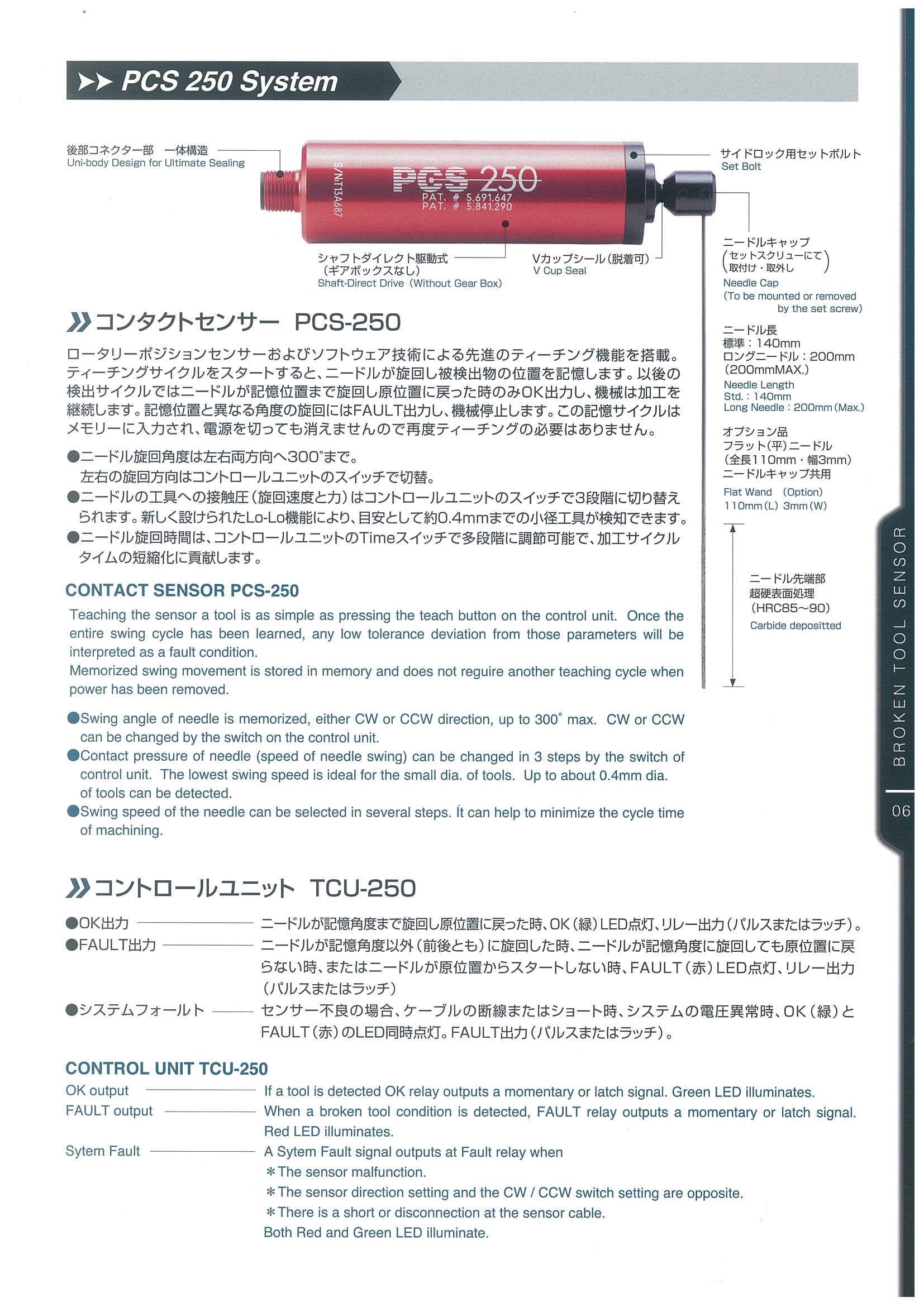

PCS-250 Sensor
SCU-100 Sensor
SCU-250 Sensor
