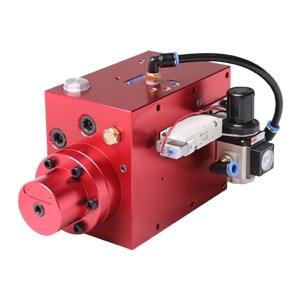

1.AH-C series (Air Booster (Single)) 2.AH-T series (Air Booster (Twin))

PIONEER Diaphragm Chuck is to clamp the workpiece as soft as possible, and evenly, to avoid the deformation when clamping by utilizing the tensile strength of special material used for diaphragm.　Naturally, the highest possible accuracy is obtainable in turning. Up to 12,000min-1 operation is possible due to the unique design which reduce the affection of centrifugal force. Super high precision and performance in turning is ensured. Size：3 to 6”, Repeatability：Within 0.4μm, Maintenance Free (No lubrication necessary) Types: Std. Rotary Type // Quick Change Type // Stationary Type

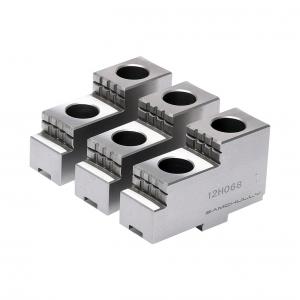

Jaws

With the years of experience and know-how, we offer you the most reliable ASA in the market. Five basic models are available to meet the different demands for the operation. For up to 12,000min-1 operation, for movable pipe when clamping and unclamping, for making sure the seating of workpiece when clamping, and for high pressure coolant application. **Special available on request.** Max. speed: 12,000min-1(JHP3HS), Max. Coolant Pressure: 1.0MPa(JHP4AHPR).

Accessories for alfa-set: Master mandrel, Reduction without clamping attachment, Reduction with clamping attachment, Measuring table, Printer, Stand, Table rack

Tool Assembly Device "alfa-clamp"

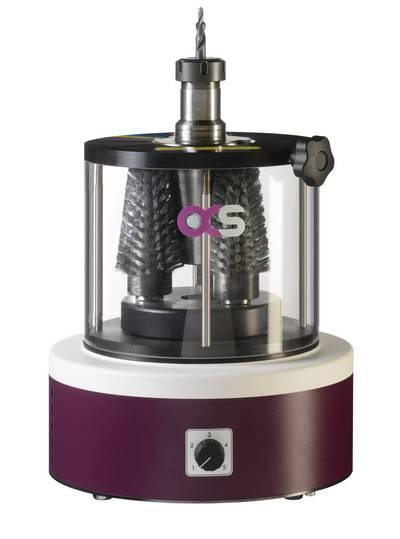

Taper Cleaning Device "alfa-cleaner"

Concentricity Tester "alfa-test"

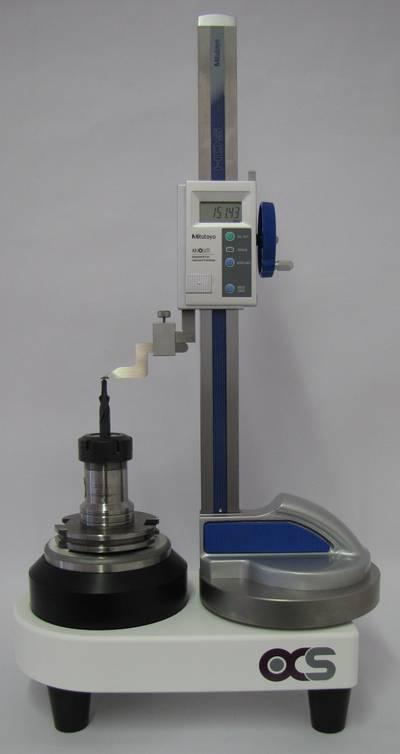

Height Gauge "alfa-height"

High gripping power and rigidity realized by ball screw mechanism. A long seller Collet Chuck which employs ball screw mechanism for the first time in the world. Various shank types and sizes are available for wide range of applications.

This chucks are most suitable chuck for drilling, milling, reaming, tapping.

Infinitesimal floating sychronized tap holder.

NC73-021, NC73-002, NC74-021, NC74-002, NC75-021, NC75-002

NCF3-401, NCF3-421(with carbide), NCF3-402, NCF3-422(with carbide), NCF4-401, NCF4-421(with carbide), NCF4-402, NCF4-422(with carbide), NCF4-403 , NCF4-423(with carbide), NCF5-401, NCF5-421(with carbide), NCF5-402, NCF5-422(with carbide), NCF5-403, NCF5-423(with carbide)

NCF3-001, NCF3-021(with carbide), NCF3-002, NCF3-022(with carbide), NCF4-001, NCF4-021(with carbide), NCF4-002, NCF4-022(with carbide), NCF4-003 , NCF4-023(with carbide), NCF5-001, NCF5-021(with carbide), NCF5-002, NCF5-022(with carbide), NCF5-003, NCF5-023(with carbide), NCF5-004, NCF5-024(with carbide), NCF5-005, NCF5-025(with cardide)

Surface Texture and Contour Measuring Instruments (ACCRETECH) model: SURFCOM CREST DX/SD
