PRECISION AIR CHUCK (Slide Jaw Type)
Over 30,000sets have been sold in the past 35 years. Based on years of experience and know-how, we offer you the AIR CHUCK which have the highest accuracy and performance in the market as of today.
Now a day, the demand for the higher accuracy and performance from the production people keep increasing. We, as a solution provider, are always ready to propose you the idea which will meet the various applications.
Size: 1.5 to 10” // Nbr. of Jaw: 2,3,4 // Repeatability: within 1.5 μm.
Types: Std. Rotary/Stationary Type, High Speed Type, Sealed Type, etc.
RW makes it possible to view the production/machining process clearly within the machine enclosure while the cutting is going with coolants.
Window always get dirty because of oils, coolants and chips. By installing the Rotary Wiper, even large amount of coolant will not prevent anoperator from being able to observe set-ups and production runs of all sort.
■Improved visible area
■Installation: By Bolts or Tape
■Easy Installation & maintenance
■Promote “Visualization”
Tool Presetter "alfa-set" มีความเที่ยงตรงสูง ใช้สำหรับset toolนอกเครื่องจักร ช่วยลดค่าใช้จ่ายในการผลิตงานจากปริมาณการผลิตที่เพิ่มมากขึ้น
Power Collet Chuck Features
JPC Precision Collet Chuck works with Hainbuch style clamping heads, high accuracy is within 0.010mm. The JPC collet chuck is compatible with Hainbuch SPANNTOP collet chuck in chucking accuracy and stability.
Precision pull-back collet chuck: 0.010mm repeatability.
Fast collet changing design: less than 30 seconds.
Adopts Hainbuch style precision clamping heads, interchangeable with Hainbuch/Autoblok's collet chucks..
Large clamping force.
Large clamping stroke: ± 0.50mm.
PCS Broken Tool Sensor
In automatic and unattended machining, it is imperative to detect the broken tool when it take place. If it’s undetected, a huge loss of cost will be caused from such as scrap parts, machine’s damage and downtime. It can be easily installed with the machine at an affordable cost, and can detect the breakage of drill, tap and reamer. The sensor is bracket-mounted close to the tool easily and conveniently. A needle is arranged in different length and can be bent so that the sensor would be installed near by the tool flexibly even though the space around he tool is tight and limited. SCU control unit is installed in the machine tool cabinet.
High sealing performance(IP67), Small dia. of tool, 1.0mm or below, can be detected.
Model：PCS-100 w/SCU-100Ca PCS-250 w/TCU-250
1.Castings or Forgins can be O.D. or I.D. clamped
2.Grips on taper up to 10˚
3.Jaws pivot up to 5˚ to grip on uneven surfaces
4.Ideal for shaft machining
5.Active pull-down for high precision

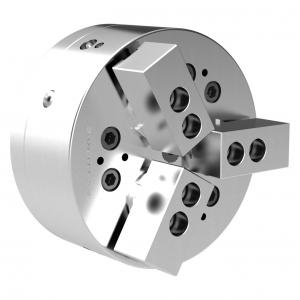

1.Ideal for second-operation I.D. gripping
2.Active pull-down for high precision
3.Counter-centrifugal gripping reduces distortion

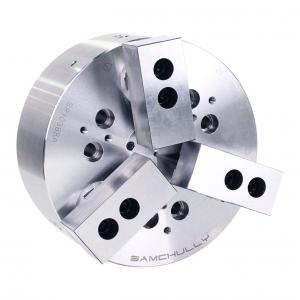

1.Ideal for second operation O.D. gripping
2.Active pull-down for high precision
3.Counter-centrifugal gripping reduces distortion

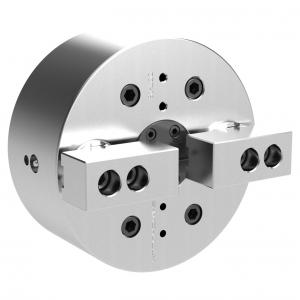

1.Workpiece pulled down to location for superior accuracy
2.Very accurate for parallel and perpendicular surfaces
3.Rapid jaw change for quick set-up
4.Sealed to prevent chips and coolant from entering the chuck body
1.Workpiece pulled down to location for superior accuracy
2.Very accurate for parallel and perpendicular surfaces
3.Rapid jaw change for quick set-up
4.Sealed to prevent chips and coolant from entering the chuck body
1.Workpiece pulled down to location for superior accuracy
2.Ideal for machining square, rectangular and irregulary-shaped components
3.Very accurate for parallel and perpendicular sufaces
